Hansen™ and Gromelle™ FD90-1044-04-04 FD90-1044-04-04

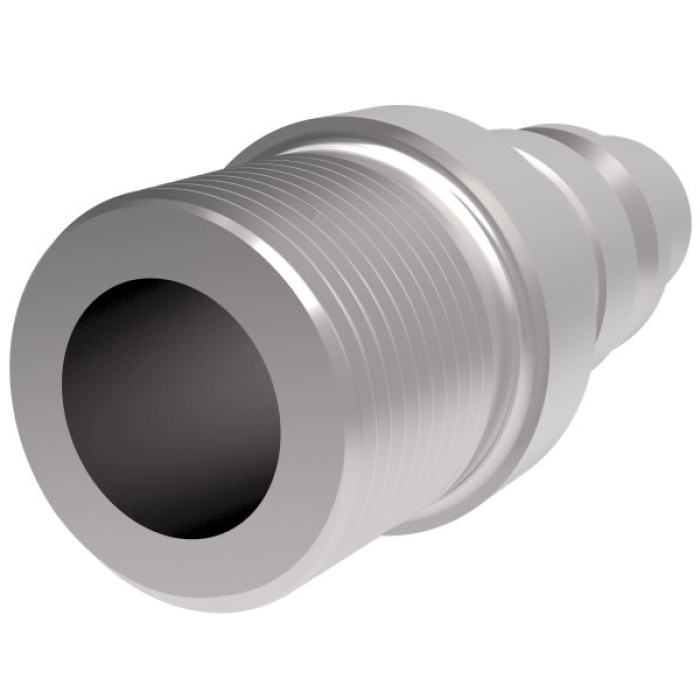

Hansen™ and Gromelle™ FD90 Zinc Trivalent-Plated Carbon Steel Male Quick Disconnect x Male SAE ORB Straight Ball Lock Coupling with 2-Way Valve

Hansen™ and Gromelle™ FD90 Straight Ball Lock Coupling with 2-Way Valve, Quick Disconnect X SAE ORB, Zinc Trivalent-Plated, Carbon Steel, 7000 psi

  • ARGPN: FD90-1044-04-04 loading
pin-int

Hansen™ and Gromelle™ Straight Ball Lock Coupling with 2-Way Valve, Series: FD90, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/4 in, Connection Type 2: SAE ORB, Gender 2: Male, Connection Size 2: 7/16 in, Thread Size 2: 7/16-20, Hex Size: 0.62 in, 7000 psi, Material Construction: Carbon Steel, Finish: Zinc Trivalent-Plated, Dimensions: 1.58 in L x 0.62 in W x 0.62 in H, Dimension Standards: SAE J1502, -4 to 212 deg F

Connection Size 1      :      1/4 in
Connection Size 2      :      7/16 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      SAE ORB
Dimension Standards      :      SAE J1502
Dimensions      :      1.58 in L x 0.62 in W x 0.62 in H
Finish      :      Zinc Trivalent-Plated
Gender 1      :      Male
Gender 2      :      Male
Hex Size      :      0.62 in
Material      :      Steel
Material Construction      :      Carbon Steel
Pressure Rating      :      7000 psi
Series      :      FD90
Shape      :      Coupling
Temperature Rating      :      -4 to 212 deg F
Thread Size 2      :      7/16-20
Danfoss FD90 Series diagnostic coupling is designed to connect and disconnect pressure gauges to hydraulic systems, eliminating the need for permanent gauges. The maximum operating pressure is 7000 psi. Automatic sleeve for one hand push-to-connect operation Flush face valving provides minimal fluid loss and low air inclusion Self-sealing valve design allows connection and disconnection at 500 psi Broad range of end configurations for system accessibility Diagnostic pressure testing for hydraulic systems Sleeve lock safety mechanism
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Hansen and Gromelle_FD90-1012-02-04_CAT.pdf
